| Sefco Product Line - LNG Transfer Pumps |
LNG Pumps |
|
|
Features
- Pumps designed for high reliability
- Modular technology for high efficiency, high flow and low bearing load
- High efficiency
- Inducer technology for low NPSHr
- Fast cool down due to light weight cold end
- Dedicated sealing for LNG application
- Designed mainly for intermittent operation
- LOX-approved cleaning procedures and assembly for all SEFCO pumps, irrespective of application
- ATEX certified
|
|
| |

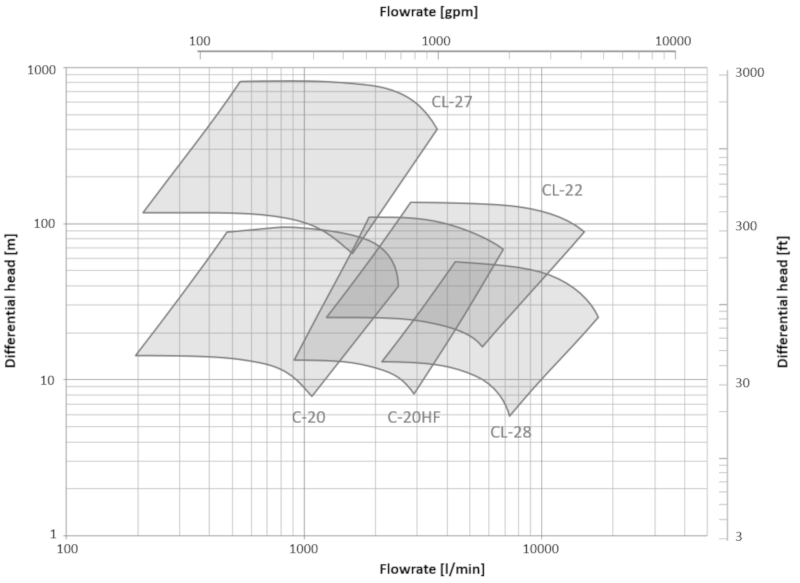

C-20 | C-20HF | CL-22 | CL-27 | CL-28
|
|
| MODEL |
C-20 |
| Differential head |
15-105 m |
50-345 ft |
| Differential pressure |
0.6-4.0 bar |
8.0-58 psi |
| Flowrate |
300-2'700 l/min |
80-715 gpm |
| Seal type |
mechanical seal (GRD) |
| Operation |
intermittent |
| MODEL |
C-20HF |
| Differential head |
15-110 m |
50-360 ft |
| Differential pressure |
0.6-4.2 bar |
8.0-61 psi |
| Flowrate |
1'000-5'500 l/min |
265-1450 gpm |
| Seal type |
mechanical seal (GRD) |
| Operation |
intermittent |
| MODEL |
CL-22 |
| Differential head |
10-120 m |
33-394 ft |
| Differential pressure |
0.4-5.0 bar |
6.0-72 psi |
| Flowrate |
1'500-12'000 l/min |
400-3'170 gpm |
| Seal type |
labyrinth |
| Operation |
continuous |
| MODEL |
CL-27 |
| Differential head |
100-470 m |
330-1'550 ft |
| Differential pressure |
4.2-20 bar |
60-290 psi |
| Flowrate |
400-2'500 l/min |
105-660 gpm |
| Seal type |
labyrinth |
| Operation |
continuous |
| MODEL |
CL-28 |
| Differential head |
10-60 m |
33-195 ft |
| Differential pressure |
0.4-2.5 bar |
6.0-36 psi |
| Flowrate |
2'000-18'000 l/min |
530-4'750 gpm |
| Seal type |
labyrinth |
| Operation |
continuous |
