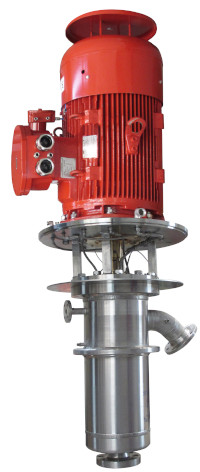

| Sefco Product Line - LNG Process Pumps |
LNG Pumps |
|
|
Features
- Pumps designed for high reliability
- Modular technology for high efficiency, high flow and low bearing load
- High efficiency
- Inducer technology for low NPSHr
- Fast cool down due to light weight cold end
- Dedicated sealing for LNG application
- Designed mainly for intermittent operation
- LOX-approved cleaning procedures and assembly for all SEFCO pumps, irrespective of application
- ATEX certified
- Availabe either as single or as multi satge units, accordingly to the specific specifications
|
|
| |
|
|
| |

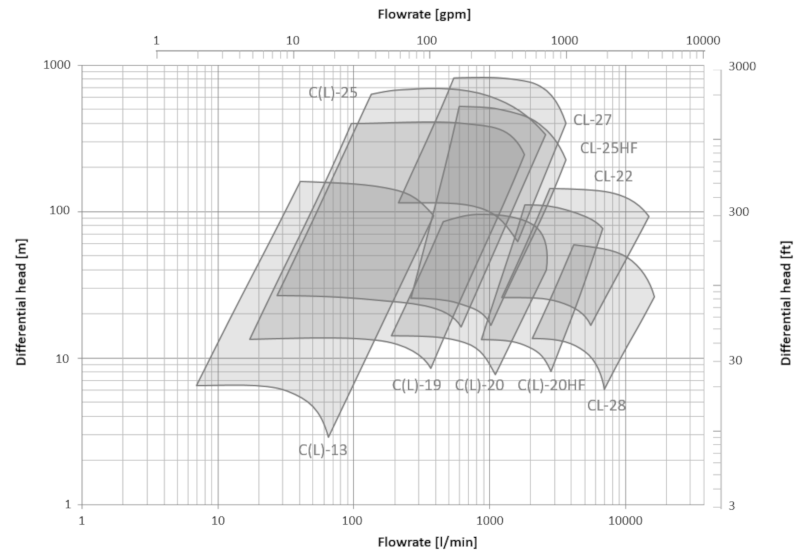

C(L)-13 | C(L)-19 | C(L)-20 | C(L)-20HF | C(L)-25 | CL-25HF | CL-22 | CL-27 | CL-28
|
|
| MODEL |
C(L)-13 |
| Differential head |
25-330 m |
80-1'000 ft |
| Differential pressure |
1.0-14 bar |
14-200 psi |
| Flowrate |
20-350 l/min |
5.3-92 gpm |
| Seal type |
mechanical seal (GRD) / labyrinth |
| Operation |
intermittent and continuous |
Top
| MODEL |
C(L)-19 |
| Differential head |
40-480 m |
130-1'575 ft |
| Differential pressure |
1.7-20 bar |
25-290 psi |
| Flowrate |
60-1'600 l/min |
16-432 gpm |
| Seal type |
mechanical seal (GRD) / labyrinth |
| Operation |
intermittent and continuous |
Top
| MODEL |
C(L)-20 |
| Differential head |
15-105 m |
50-345 ft |
| Differential pressure |
0.6-4.0 bar |
8.0-58 psi |
| Flowrate |
300-2'700 l/min |
80-715 gpm |
| Seal type |
mechanical seal (GRD) / labyrinth |
| Operation |
intermittent and continuous |
Top
| MODEL |
C(L)-20HF |
| Differential head |
15-110 m |
50-360 ft |
| Differential pressure |
0.6-4.2 bar |
8.0-610 psi |
| Flowrate |
1'000-5''500 l/min |
265-1450 gpm |
| Seal type |
mechanical seal (GRD) / labyrinth |
| Operation |
intermittent and continuous |
Top
| MODEL |
C(L)-25 |
| Differential head |
50-550 m |
164-1'800 ft |
| Differential pressure |
02.1-23 bar |
30-334 psi |
| Flowrate |
100-1'600 l/min |
26.4-420 gpm |
| Seal type |
mechanical seal (GRD) / labyrinth |
| Operation |
intermittent and continuous |
Top
| MODEL |
C(L)-25HF |
| Differential head |
50-400 m |
164-1'300 ft |
| Differential pressure |
2.1-17 bar |
30-250 psi |
| Flowrate |
400-2'600 l/min |
105-690 gpm |
| Seal type |
labyrinth |
| Operation |
continuous |
Top
| MODEL |
CL-22 |
| Differential head |
10-120 m |
33-394 ft |
| Differential pressure |
0.4-5.0 bar |
6.0-72 psi |
| Flowrate |
1'500-12''000 l/min |
400-3'170 gpm |
| Seal type |
labyrinth |
| Operation |
continuous |
Top
| MODEL |
CL-27 |
| Differential head |
100-470 m |
330-1'550 ft |
| Differential pressure |
4.2-20 bar |
60-290 psi |
| Flowrate |
400-2'500 l/min |
105-660 gpm |
| Seal type |
labyrinth |
| Operation |
continuous |
Top
| MODEL |
CL-28 |
| Differential head |
10-60 m |
33-195 ft |
| Differential pressure |
0.4-2.5 bar |
6.0-36 psi |
| Flowrate |
2'000-18'000 l/min |
530-4'750 gpm |
| Seal type |
labyrinth |
| Operation |
continuous |
Top

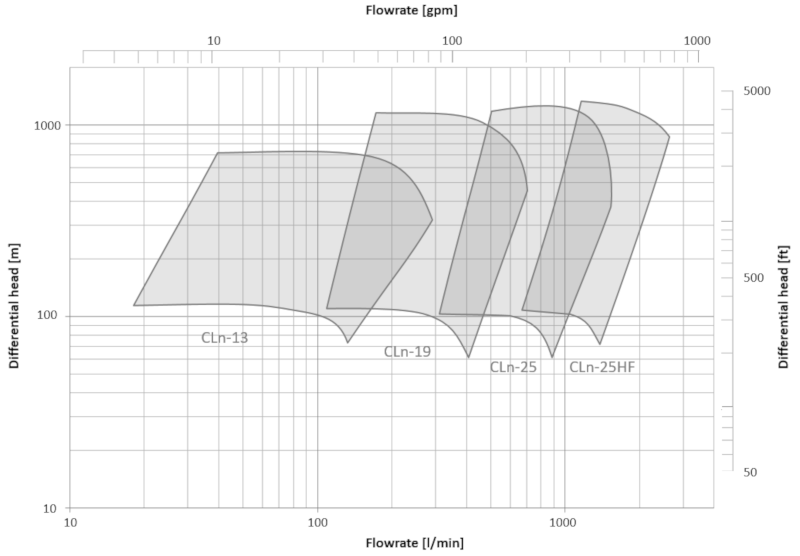

CLn-13 | CLn-19 | CLn-25 | CLn-25HF
|
